普通最小二乘法（OLS）在经典假设下是最优线性无偏估计量（BLUE）。然而，当误差项存在异方差（即误差方差随解释变量的变化而变化）时，OLS 估计量虽然仍然无偏，但不再是有效的——存在更好的估计方法。
加权最小二乘法（WLS） 是处理异方差的经典方法：对每个观测值赋予不同的权重，方差较小的观测值获得更大的权重，从而提高估计效率。
本文通过数值模拟，直观展示 OLS 与 WLS 的差异。
考虑如下一元线性回归模型：
\[ y_i = \beta_0 + \beta_1 x_i + \varepsilon_i, \quad i = 1, 2, \ldots, n \]
异方差设定：误差项的方差随 \(x_i\) 剧烈变化：
\[ \varepsilon_i \sim N\left(0,\ \sigma^2 \cdot x_i^4\right) \]
即标准差与 \(x_i^2\) 成正比。当 \(x_i = 1\) 时标准差约为 2.5，当 \(x_i = 10\) 时标准差高达 250，最大与最小方差之比达到 \(10^4\)，异方差极为剧烈。
真实参数：\(\beta_0 = 2\)，\(\beta_1 = 3\)，\(\sigma = 2.5\)，\(n = 40\)
library(tidyverse)
library(broom)
library(knitr)
library(kableExtra)
library(patchwork)
# 设置随机种子，保证结果可复现
set.seed(7)
# 真实参数
beta0 <- 2
beta1 <- 3
sigma <- 2.5 # 较大噪声，使异方差效果更显著
n <- 40 # 较小样本量，使单次估计波动更明显
# 生成解释变量：在 [1, 10] 上均匀分布
x <- runif(n, min = 1, max = 10)
# 异方差误差：Var(εᵢ) = σ² · xᵢ⁴，即 sd = σ · xᵢ²
# x=1 时 sd≈2.5，x=10 时 sd≈250，方差比高达 10000 倍
epsilon <- rnorm(n, mean = 0, sd = sigma * x^2)
# 生成因变量
y <- beta0 + beta1 * x + epsilon
# 整理为数据框
df <- tibble(x = x, y = y)ggplot(df, aes(x = x, y = y)) +
geom_point(alpha = 0.7, color = "steelblue", size = 2.5) +
geom_abline(intercept = beta0, slope = beta1,
color = "black", linewidth = 1.2, linetype = "dashed") +
annotate("text", x = 1.2, y = max(y) * 0.92,
label = "真实回归线", color = "black", size = 4, hjust = 0) +
labs(

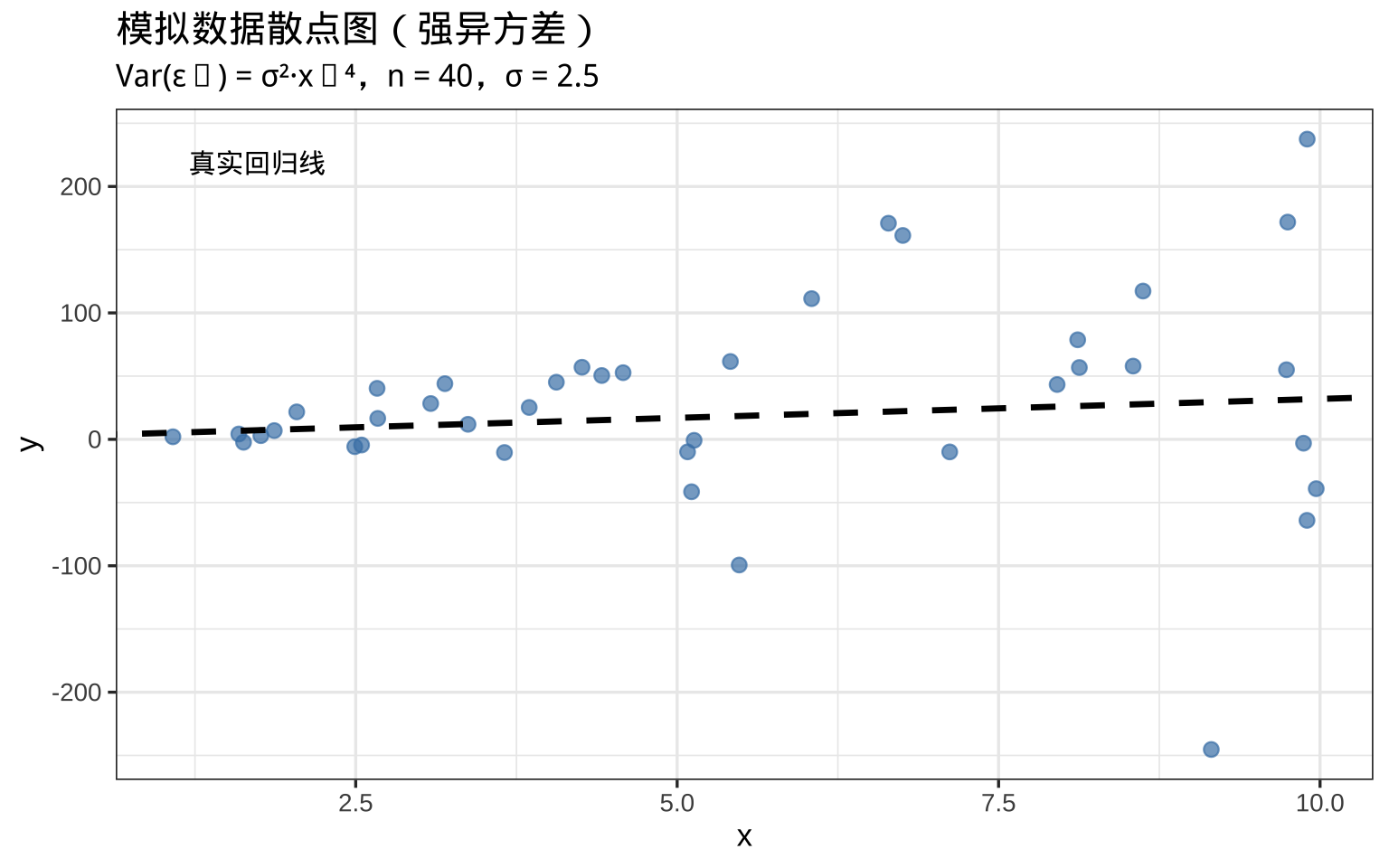

title = "模拟数据散点图（强异方差）",
subtitle = paste0("Var(εᵢ) = σ²·xᵢ⁴，n = ", n, "，σ = ", sigma),
x = "x", y = "y"
) +
theme_bw(base_size = 13)
OLS 对所有观测值赋予相同权重，最小化残差平方和：
\[ \hat{\boldsymbol{\beta}}_{OLS} = \arg\min \sum_{i=1}^n (y_i - \beta_0 - \beta_1 x_i)^2 \]
在强异方差情形下，右端（\(x\) 大）的点波动极大，OLS 会被这些高方差点过度影响，导致估计偏离真实值。
fit_ols <- lm(y ~ x, data = df)
summary(fit_ols)
Call:
lm(formula = y ~ x, data = df)
Residuals:
Min 1Q Median 3Q Max
-292.260 -24.055 2.208 25.576 187.103
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 5.102 27.162 0.188 0.852
x 4.572 4.432 1.032 0.309
Residual standard error: 79.57 on 38 degrees of freedom
Multiple R-squared: 0.02724, Adjusted R-squared: 0.00164
F-statistic: 1.064 on 1 and 38 DF, p-value: 0.3088WLS 对每个观测值赋予不同权重，最小化加权残差平方和：
\[ \hat{\boldsymbol{\beta}}_{WLS} = \arg\min \sum_{i=1}^n w_i (y_i - \beta_0 - \beta_1 x_i)^2 \]
已知方差结构 \(\text{Var}(\varepsilon_i) = \sigma^2 x_i^4\)，最优权重为：
\[ w_i = \frac{1}{\text{Var}(\varepsilon_i)} = \frac{1}{x_i^4} \]
这样，右端高方差的点权重极小（不被过度利用），左端低方差的点权重大（充分利用可靠信息）。
# 最优权重：wᵢ = 1 / xᵢ⁴（与方差结构匹配）
fit_wls <- lm(y ~ x, data = df, weights = 1 / x^4)
summary(fit_wls)
Call:
lm(formula = y ~ x, data = df, weights = 1/x^4)
Weighted Residuals:
Min 1Q Median 3Q Max
-4.4521 -1.1498 0.0189 1.2474 3.8342
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) -7.150 3.869 -1.848 0.0723 .
x 7.588 2.273 3.338 0.0019 **
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 1.965 on 38 degrees of freedom
Multiple R-squared: 0.2268, Adjusted R-squared: 0.2064
F-statistic: 11.14 on 1 and 38 DF, p-value: 0.001897coef_ols <- tidy(fit_ols) |> mutate(方法 = "OLS")
coef_wls <- tidy(fit_wls) |> mutate(方法 = "WLS")
bind_rows(coef_ols, coef_wls) |>
mutate(
term = recode(term, "(Intercept)" = "截距 β₀", "x" = "斜率 β₁"),
真实值 = ifelse(term == "截距 β₀", beta0, beta1),
偏差 = round(estimate - 真实值, 4)
) |>
select(方法, 参数 = term, 真实值,
估计值 = estimate, 偏差,
标准误 = std.error,
t统计量 = statistic, p值 = p.value) |>
kable(digits = 4, align = "c") |>
kable_styling(
bootstrap_options = c("striped", "hover", "condensed"),
full_width = FALSE
) |>
row_spec(0, bold = TRUE, background = "#4472C4", color = "white")| 方法 | | 参数 | 真实 | | 估计值 | 偏差 | | 准误 | t统计 | | p值 | ||
|---|---|---|---|---|---|---|---|
| OLS | 截距 β₀ | | 2 | | .1021 | | .1021 | | 7.1616 | | .1878 | | .8520 | |
| OLS | 斜率 β₁ | | 3 | | .5719 | | .5719 | | .4322 | | .0315 | | .3088 | |
| WLS | 截距 β₀ | | 2 | | 7.1505 | | 9.1505 | | .8686 | | 1.8483 | | .0723 | |
| WLS | 斜率 β₁ | | 3 | | .5883 | | .5883 | | .2732 | | .3382 | | .0019 | |
注意：单次估计可能因随机波动出现 OLS 比 WLS 更准的情况。判断估计量优劣应依据多次重复试验的平均表现，见第 5 节蒙特卡洛模拟。
单次模拟带有随机性，无法准确反映估计量的统计性质。通过 1000 次重复模拟，我们可以系统评估两种估计量的无偏性与有效性。
set.seed(2024)
B <- 1000
results <- map_dfr(1:B, function(b) {
x_b <- runif(n, 1, 10)
eps_b <- rnorm(n, 0, sigma * x_b^2)
y_b <- beta0 + beta1 * x_b + eps_b
ols_b <- lm(y_b ~ x_b)
wls_b <- lm(y_b ~ x_b, weights = 1 / x_b^4)
tibble(
sim = b,
ols_b0 = coef(ols_b)[1],
ols_b1 = coef(ols_b)[2],
wls_b0 = coef(wls_b)[1],
wls_b1 = coef(wls_b)[2]
)
})单次估计可能因随机波动产生误导。这里用 1000 次模拟的平均系数画拟合线，能够客观反映两种方法的系统性差异。
# 使用蒙特卡洛平均系数，消除单次随机波动的影响
b0_ols <- mean(results$ols_b0); b1_ols <- mean(results$ols_b1)
b0_wls <- mean(results$wls_b0); b1_wls <- mean(results$wls_b1)
ggplot(df, aes(x = x, y = y)) +
geom_point(alpha = 0.55, color = "gray50", size = 2) +
geom_abline(aes(intercept = beta0, slope = beta1,
color = "真实回归线", linetype = "真实回归线"),
linewidth = 1.3) +
geom_abline(aes(intercept = b0_ols, slope = b1_ols,
color = "OLS", linetype = "OLS"),
linewidth = 1.1) +
geom_abline(aes(intercept = b0_wls, slope = b1_wls,
color = "WLS", linetype = "WLS"),
linewidth = 1.1) +
annotate("text", x = 7.8, y = beta0 + beta1 * 7.8 + 100,
label = sprintf("真实值: β₁ = %.2f", beta1),
color = "black", size = 3.8, hjust = 0, fontface = "bold") +
annotate("text", x = 7.8, y = beta0 + beta1 * 7.8 + 60,
label = sprintf("OLS 均值: β₁ = %.2f", b1_ols),
color = "#E74C3C", size = 3.8, hjust = 0, fontface = "bold") +
annotate("text", x = 7.8, y = beta0 + beta1 * 7.8 + 20,
label = sprintf("WLS 均值: β₁ = %.2f", b1_wls),
color = "#27AE60", size = 3.8, hjust = 0, fontface = "bold") +
scale_color_manual(
name = "方法",
values = c("真实回归线" = "black", "OLS" = "#E74C3C", "WLS" = "#27AE60"),
breaks = c("真实回归线", "OLS", "WLS")
) +
scale_linetype_manual(
name = "方法",
values = c("真实回归线" = "dashed", "OLS" = "solid", "WLS" = "solid"),
breaks = c("真实回归线", "OLS", "WLS")
) +
labs(

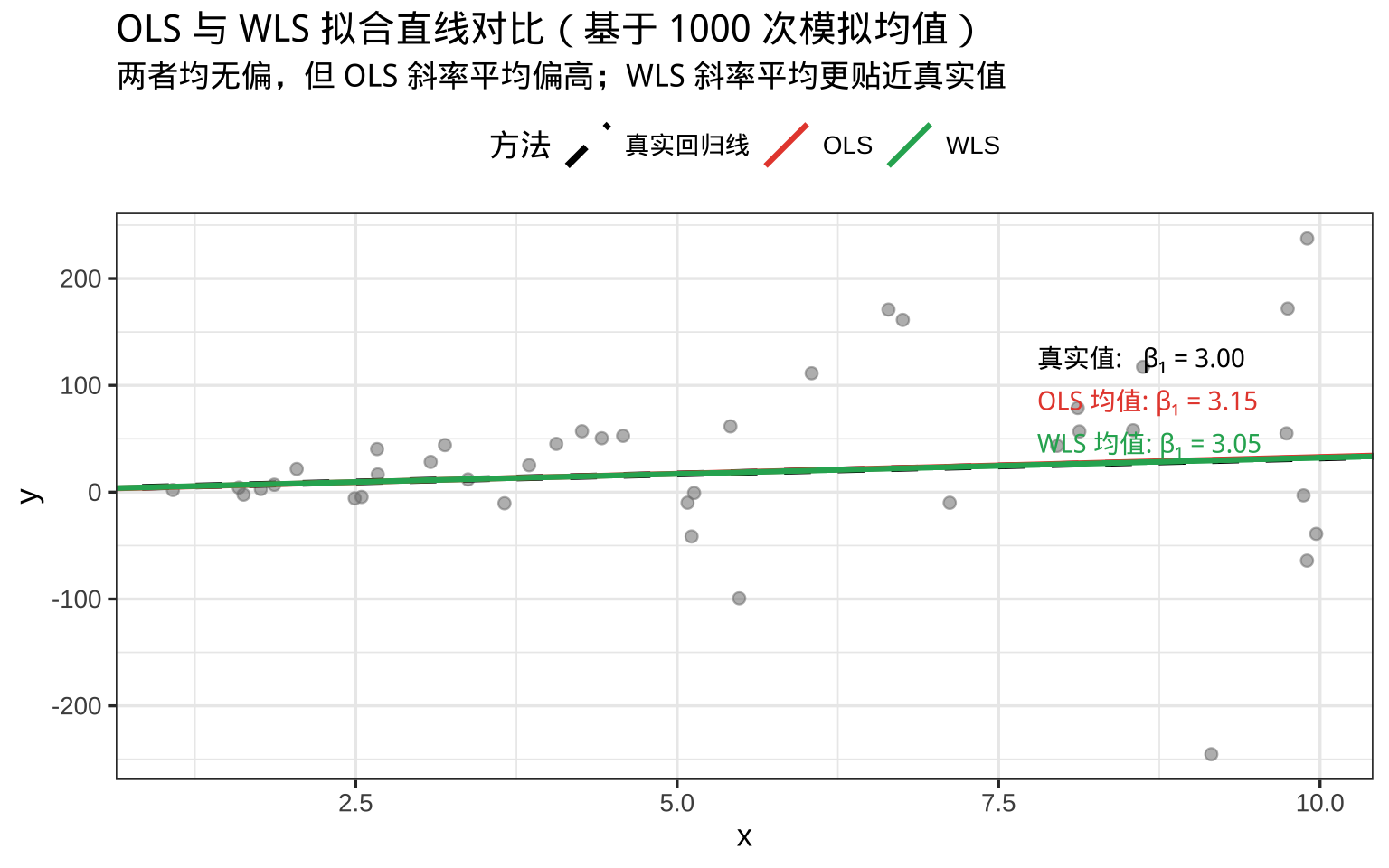

title = "OLS 与 WLS 拟合直线对比（基于 1000 次模拟均值）",
subtitle = "两者均无偏，但 OLS 斜率平均偏高；WLS 斜率平均更贴近真实值",
x = "x", y = "y"
) +
theme_bw(base_size = 13) +
theme(legend.position = "top")
results_long <- results |>
select(sim, ols_b1, wls_b1) |>
pivot_longer(-sim, names_to = "method", values_to = "beta1_hat") |>
mutate(method = recode(method, "ols_b1" = "OLS", "wls_b1" = "WLS"))
# 各方法标准差，用于图内标注
sd_ols <- sd(results$ols_b1)
sd_wls <- sd(results$wls_b1)
ggplot(results_long, aes(x = beta1_hat, fill = method, color = method)) +
geom_density(alpha = 0.35, linewidth = 1) +
geom_vline(xintercept = beta1, linetype = "dashed",
linewidth = 1.1, color = "black") +
annotate("text", x = beta1 + 0.15, y = Inf,
label = paste0("真实值 β₁ = ", beta1),
vjust = 2, hjust = 0, size = 3.8, color = "black") +
annotate("text", x = beta1 + 2, y = 0.25,
label = sprintf("OLS SD = %.3f", sd_ols),
color = "#E74C3C", size = 3.8, hjust = 0) +
annotate("text", x = beta1 + 2, y = 0.20,
label = sprintf("WLS SD = %.3f", sd_wls),
color = "#27AE60", size = 3.8, hjust = 0) +
scale_fill_manual(values = c("OLS" = "#E74C3C", "WLS" = "#27AE60")) +
scale_color_manual(values = c("OLS" = "#E74C3C", "WLS" = "#27AE60")) +
labs(

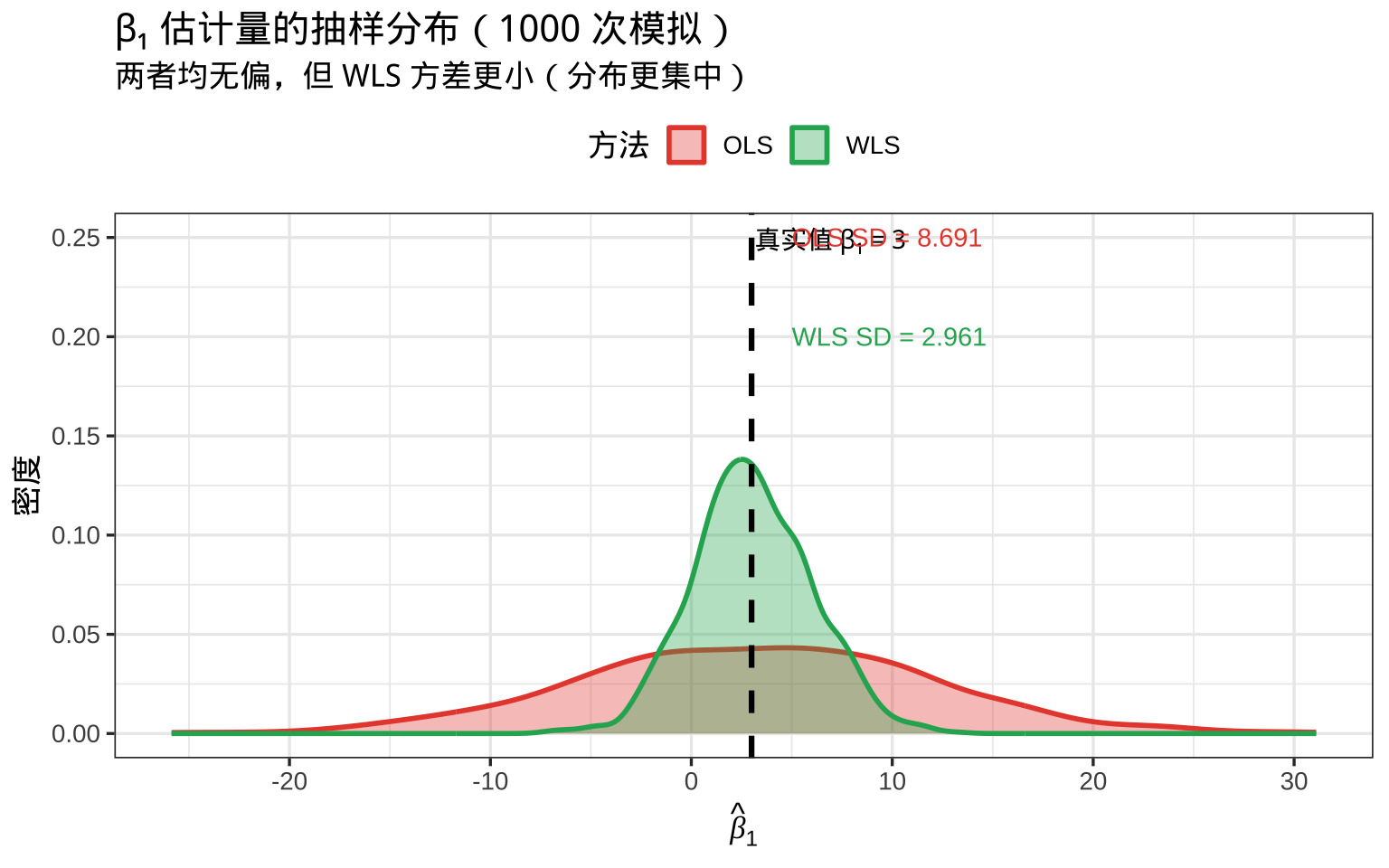

title = "β₁ 估计量的抽样分布（1000 次模拟）",
subtitle = "两者均无偏，但 WLS 方差更小（分布更集中）",
x = expression(hat(beta)[1]),
y = "密度",
fill = "方法",
color = "方法"
) +
theme_bw(base_size = 13) +
theme(legend.position = "top")
summary_stats <- tibble(
方法 = c("OLS", "WLS"),
`β₀ 均值` = c(mean(results$ols_b0), mean(results$wls_b0)),
`β₀ 标准差`= c(sd(results$ols_b0), sd(results$wls_b0)),
`β₀ MSE` = c(mean((results$ols_b0 - beta0)^2),
mean((results$wls_b0 - beta0)^2)),
`β₁ 均值` = c(mean(results$ols_b1), mean(results$wls_b1)),
`β₁ 标准差`= c(sd(results$ols_b1), sd(results$wls_b1)),
`β₁ MSE` = c(mean((results$ols_b1 - beta1)^2),
mean((results$wls_b1 - beta1)^2))
)
kable(summary_stats, digits = 4, align = "c") |>
kable_styling(
bootstrap_options = c("striped", "hover"),
full_width = FALSE
) |>
row_spec(0, bold = TRUE, background = "#4472C4", color = "white") |>
add_header_above(
c(" " = 1, "截距 β₀" = 3, "斜率 β₁" = 3),
bold = TRUE
)| 方法 | | ₀ 均值 | β₀ | 标准差 | β₀ M | E | β₁ 均值 | | β₁ 标准差 | β₁ MSE | | |
|---|---|---|---|---|---|---|
| OLS | 1.5490 | 32.9104 | 1082.2132 | 3.1474 | 8.6911 | 75.4815 |
| WLS | 1.8849 | 5.8974 | 34.7582 | 3.0545 | 2.9615 | 8.7646 |
解读：两种方法的均值都非常接近真实参数（无偏性），但 WLS 的标准差和 MSE 均明显小于 OLS，印证了在异方差下 WLS 是更有效的估计量。

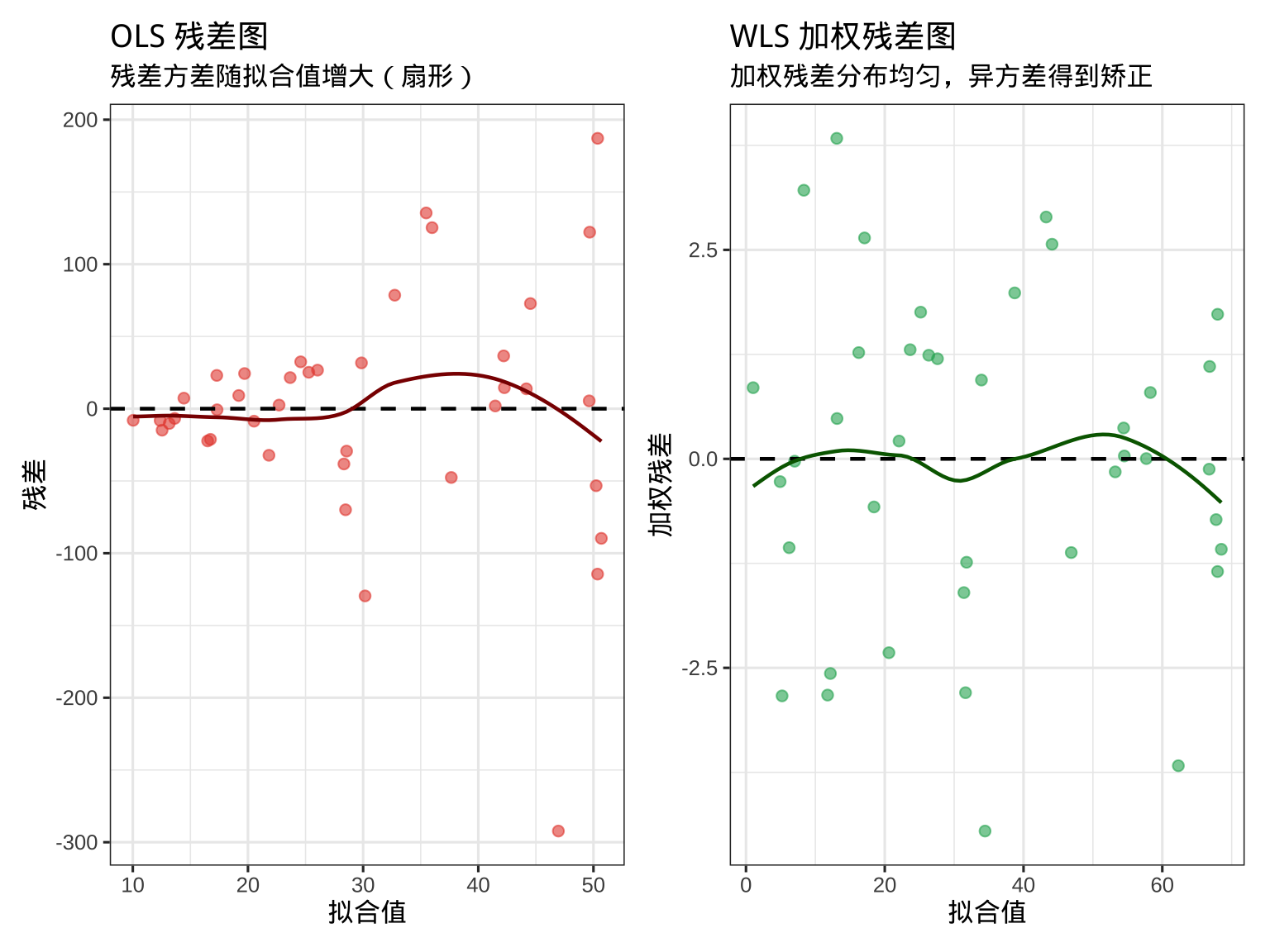

异方差的重要诊断工具是残差图。
p1 <- ggplot(
data.frame(fitted = fitted(fit_ols), resid = resid(fit_ols)),
aes(x = fitted, y = resid)
) +
geom_point(alpha = 0.6, color = "#E74C3C", size = 2) +
geom_hline(yintercept = 0, linetype = "dashed", linewidth = 0.8) +
geom_smooth(se = FALSE, color = "darkred",
linewidth = 0.8, method = "loess", formula = y ~ x) +
labs(
title = "OLS 残差图",
subtitle = "残差方差随拟合值增大（扇形）",
x = "拟合值", y = "残差"
) +
theme_bw(base_size = 12)
# WLS 加权残差 = 残差 / xᵢ²（还原为等方差尺度）
p2 <- ggplot(
data.frame(fitted = fitted(fit_wls), resid = resid(fit_wls) / x^2),
aes(x = fitted, y = resid)
) +
geom_point(alpha = 0.6, color = "#27AE60", size = 2) +
geom_hline(yintercept = 0, linetype = "dashed", linewidth = 0.8) +
geom_smooth(se = FALSE, color = "darkgreen",
linewidth = 0.8, method = "loess", formula = y ~ x) +
labs(
title = "WLS 加权残差图",
subtitle = "加权残差分布均匀，异方差得到矫正",
x = "拟合值", y = "加权残差"
) +
theme_bw(base_size = 12)
p1 + p2
| 比较维度 | | OLS | | WLS | |
|---|---|---|
| 基本假设 | | 同方差 | | 许异方差 | |
| 目标函数 | | ∑ εᵢ² | | ∑ wᵢεᵢ² | |
| 权重设定 | | 部为 1 | | ᵢ = 1/σᵢ² | |
| 无偏性 | | ✓ 无偏 | | ✓ 无偏 | |
| 有效性（异方差下） | ✗ 非最有效 | | ✓ 高斯-马尔科夫最优 | | |
| 适用场景 | 误差 | 差恒定 | 误差方差已知或可 | 计 | |
核心要点：
- 无偏性：OLS 和 WLS 都是无偏估计量，在多次重复试验中均值都收敛到真实参数。
- 有效性：在异方差存在时，WLS 的方差（标准误）更小，是更有效的估计量；OLS 被高方差的观测值”拖累”，估计的不确定性更大。
- 单次 vs. 平均：单次模拟中 OLS 偶尔可能比 WLS 更接近真实值，这是正常的随机波动。判断估计量优劣的标准是多次重复的平均表现（MSE），而非单次结果。
- 权重的作用：WLS 通过给低方差点赋予更大权重，充分利用”可靠”的信息，降低了估计的不确定性。
- 实践中的挑战：WLS 需要正确知道方差结构。
